Rilevatore elettrodinamico di rottura maniche


Rilevatore di rotture filtro macroscopiche con unità di controllo. Rileva aumenti significativi del carico di polvere segnalando il degrado del mezzo filtrante in filtri a maniche o a cartuccia.

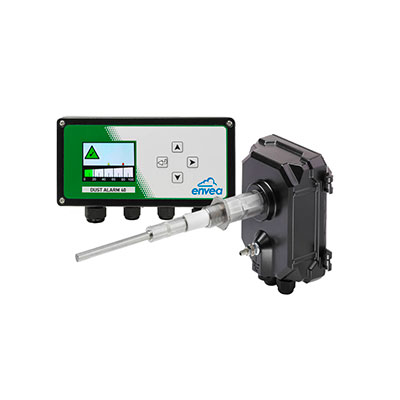

The Dust Alarm 40 provides incredible capabilities at a cost-effective price for the continuous monitoring of broken bags in Fabric Filter Baghouses. As a ‘Dust Gross Filter Failure Detector’, the instrument detects significant increases in particulate loading which indicates a failure in the arrestment plant, providing warnings of filter media degradation in baghouses and cartridge filters.
  • The Dust Alarm 40 (DA-40) is an extremely rugged, accurate & repeatable dust measurement device
  • Full colour, icon-driven menu and display
  • Two independent alarm set points
  • Relative dust reading on clear scale 0-100%
  • Dust “Overrange” icon
  • Security setting
  • Digital Signal Processing
  • Field upgradable
  • Stacks after bag filters, cartridge filters, cyclones
  • Variable velocities within range 4-30m/s (typical bagfilter velocity ranges), constant velocity required outside this range
    Typical Applications:

  • Incineraton
  • Metals (eg Steel/Aluminium)
  • Minerals (eg Cement/Gypsum)
  • Chemicals (eg Detergent / Ti02)
  • Food (eg Milk Powder / Tobbacco)
  • Power (eg Boilers/Biomass)
Technical Specifications
Measured parameters Dust
Technology ElectroDynamic™ Advanced Probe Electrification
Measurement/Monitoring capability 0-500 mg/m3*
Stack/Duct diameter suitability up to 4m
Flue gas temperature up to 250°C
Baghouse YES
Cartridge Filter YES
Ceramic Filter /
Coalescent Filter /
Cyclone YES
Electrostatic Precipitator (ESP) /
Wet Electrostatic Precipitator (WESP) /
Wet Scrubber /
Sensor variants Stainless Steel
QA checks N/A
*Application dependant
Technical Data
Measurement capability 0-500 mg/m3
Sensor Variants 316 Stainless Steel (standard)
Stack Temperature Ranges 0-125°C standard up to 250°C option
Outputs 2 x Digital Alarm (1 x 4/20mA option)
  • US EPA MACT Compliant BLD
  • ATEX – Ex Zone 2
