Monitoraggio automatico del mercurio a camino

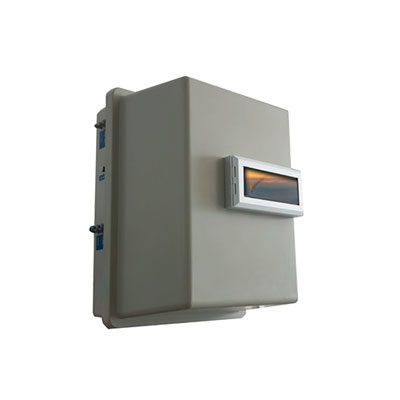

SM-3
The SM-3 measures continuously the elemental, bound and ionic mercury in stack fluegas
Il principio di funzionamento dell’SM-3 si basa su una tecnica completamente nuova: il cracking dei composti di mercurio e la riduzione del mercurio ionico contenuto nei gas di scarico vengono effettuati per via termocatalitica.
Si evita il trattamento chimico umido del gas campione con reagenti e gorgogliatori. La manutenzione e l’assistenza dell’SM-3 sono quindi estremamente facili.
Esempio di utilizzo:
Può essere utilizzato anche per applicazioni mobili.
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Approvals & Certifications
- Downloads
- True continuous mercury measurement (not measuring cycle)
- No wet-chemistry, no use of reagents
- Maintenance-free solid state catalyst
- Range 1 to 45; 0 to 75; 0 to 500 µg/m3 Hg (other ranges upon request)
- Corrosion protected, rugged construction
- Compact size, mobile operation possible
- Detects elemental, ionic and bound mercury
- Coal fired power plants
- Municipal waste incinerators
- sewage sludge incinerators
- Hazardous waste incinerators
- Cement production
- Thermal soil resanitation plants
- Wood combustors using recycled wood
- Metal recycling furnaces
| Technical Specifications | |
|---|---|
| Signal outputs | analogue: 4 – 20 mA (max. 500 Ω); serial: RS 232; Modbus (option) |
| Status output | 3 x pairs of relay contacts (dry contacts) |
| Max. sample temperature | 200 °C |
| Ambient temperature range allowed | 5 – 40 °C |
| Sample line length | 30 m |
| Power supply | 230 VAC / 50 Hz (110 VAC / 60 Hz option) |
| El. Power consumption | Analyzer: max. 100 VA; sample line: max. 150 VA / meter |
| Dimensions (W x H x D) | approx. 55 x 160 x 70cm (mounted on stand) |
| Weight | approx. 50 kg |
| Technical data | |
|---|---|
| Measuring principle | thermocatalytic reduction at stack, cold vapor atomic absorption (CVVAAS) at 253.7 nm |
| Measured component | Total Gaseous Mercury (TGM) |
| UV-Source | Electrodeless low pressure mercury lamp (EDL) |
| Stabilization method | Reference beam method |
| Optical cell | Fused silica (Suprasil), l: approx. 230mm, heated approx. 45° |
| Measuring ranges | 0 – 50 µg/m3; 0 – 75 µg/m3; 0 – 500 µg/m3 |
| Detection limit | < 1 µg/m3 |
| Response time T90 | approx. 1 minute |
| Air supply | oil-free compressed air, approx. 1.5 bar |
- Our products are manufactured according to the ISO 9001 quality regulations.
- CE approved
