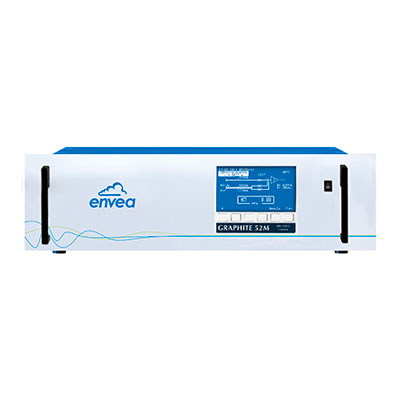

Graphite 52M

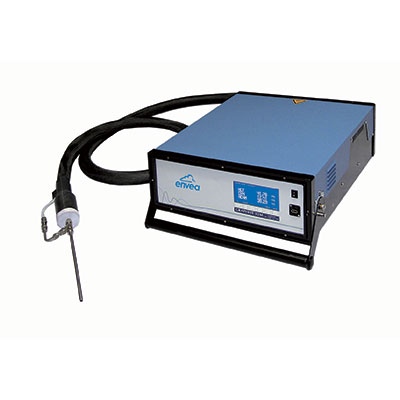

L’unico analizzatore FID certificato QAL1 disponibile anche in versione portatile per la misurazione di: COT oppure contemporaneamente TOC metanici e non metanici

Utilizza la rilevazione di ionizzazione di fiamma (FID), la tecnologia più sensibile ed utilizzata per la misurazione di: idrocarburi totali (COT) / Idrocarburi non metanici / Metano CH4
• Disponibile in due versioni:
GRAPHITE 52M-S : monitoraggio idrocarburi totali
GRAPHITE 52M-D : monitoraggio simultaneo di idrocarburi totali, idrocarburi non metanici e metano

  • All elements in contact with the sample from its extraction to the analysis are heated
  • Adapted for checking the efficiency of a treatment process (upstream / downstream)
  • Integrated zero air generator with catalyzer
  • Up to 191°C heated detector for high concentration HC measurement
  • Fuel used: mixture of H2 & He (QAL1) or pure H2 (optional)
  • Fast response time, perfectly suited for wet and corrosive sample measurements
  • High accuracy, sensitivity and stability
  • User adjustable response time and averaging time
  • Real time calibration graph
  • High efficiency long-life catalyst
  • Internal zero and air scrubber
  • Graphic LCD Display with interactive menu driven software and enhanced speed display
  • AK protocol communication (RS232 / RJ45), built-in Ethernet TCP/IP connection, USB port for remote control and serial interface RS 232
  • Complies with EN 12619 & EN 13 526 standards for emissions monitoring and CFR 40 1065 (US EPA) for engine emission testing of hydrocarbons

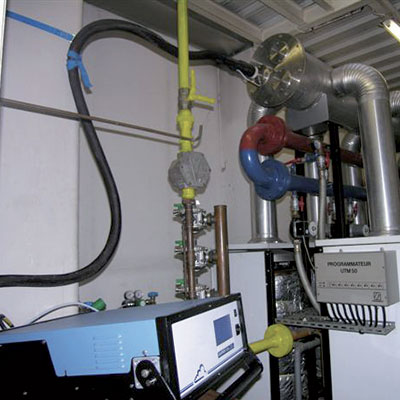

  • Compliance & process monitoring
  • Engine exhaust gas & automotive emission testing
  • Stack Monitoring
  • Monitoring effluent of volatile organic compound (VOC) reduction equipment for:
    – Environmental compliance
    – Efficiency control of incinerators (Thermal or catalytic)
  • Carbon absorbers
  • Monitoring of catalytic converters
  • Combustion and diesel engine efficiency
  • Scrubbers
Measurable parameters
Pollutant Range
CH4 0-10 / 10000
THC 0-10 / 10000
Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
Technical Specifications
QAL1 to EN 15267-3 certified YES
US EPA compliance YES
Sampling technology Hot/Wet Extraction
Sample transfert 180°C heated sampling line
back flush function YES
span injection YES on analyser or at sample point
Built-In O2 option NO
Serial link communication RS232 / RS422
Other Communication Ethernet
Analogue OUTPUTS Optional
Analogue INPUTS NO
Dimensions (mm) 19” rack: 483 x 470 x 177 (L x W x H)
  • QAL 1 certified by the TÜV and the MCERTs according to EN 15267-3 and the EN 14181
    MCERTs QAL 1 certified gas monitor
    Sira MC 060082/11
  • U.S. EPA approved as compliant with CFR 40-1065
  • Compliance with EU Regulations: IED (WID), LCPD, MCP directive,
  • Compliance with EN 12619 & EN 13526, US EPA (40 CFR 60 & 75, CFR 40-1065)
