SISTEMA DI CAMPIONAMENTO RISCALDATO

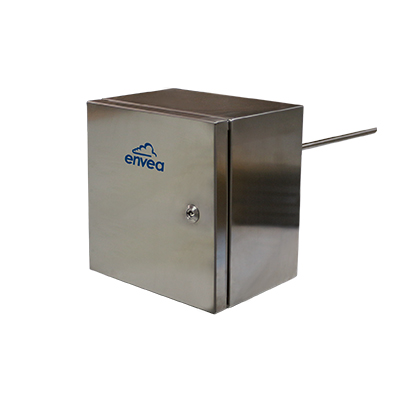

LCPD BOX
Il sistema LCPD BOX è completo di sonda di campionamento e filtro riscaldato per rimuovere il particolato.
La sonda è utilizzabile sia con analizzatori che funzionano “a caldo” o “ a freddo” come il MIR 9000, MIR 9000e, MIR IS …. aggiungendo un chiller per la deumidificazione del campione.
The LCPD BOX sampling system uses the Hot Wet Extractive (Wet Basis Analysis).
- Stainless steel probe tube with optional reusable primary filter
- Corrosion resistant enclosure
- Temperature regulated heated block, containing zero-air / span gas connection & heated line connectors
- Check valve eliminates dead volume
- Large volume, quick-pulse blow-back
- Heated filter prevents condensation
Hot Wet Extractive (Wet Basis Analysis)
The gas sample is extracted and transferred through heated sampling lines. It is heated above 180°C in order to avoid acid dew points for the analysis process. Upon arrival to the analyzer, the sample is hot and wet.
