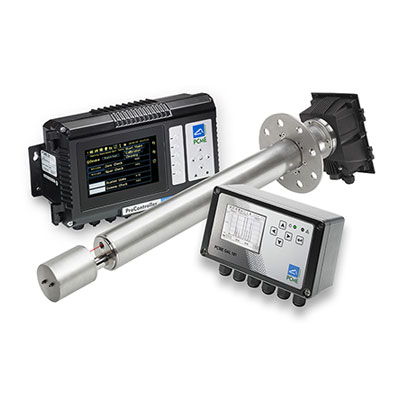

Misuratore di polvere a diffrazione in avanti conferme a PS-11
Misuratore di polvere per emissioni a diffrazione ottica conforme alla PS-11 dello US-EPA per misurazione ad alte prestazioni della concentrazione di polvere da processi industriali
Utilizzando la tecnologia di misurazione brevettata ProScatter™ Forward Scatter per misurare concentrazioni di particelle tipicamente comprese tra 0,06 mg/m3 e 300 mg/m3, questa tecnologia di misurazione offre un livello di prestazioni migliorato, rendendo lo STACK 181 molto adatto per l’uso come PM CPMS o PM CEMS, che deve soddisfare i requisiti dell’US EPA PS-11 per gli operatori del sito che desiderano conformarsi alle più recenti normative MACT e MATS.
Lo STACK 181 è adatto per misurare le emissioni di particelle provenienti sia da filtri a maniche che da sistemi di precipitazione elettrostatica.
- Features & Benefits
- Main applications
- Technical specifications
- Technical Data
- Approvals & Certifications
- Downloads
- Robust design with no critical moving parts
- Available for use in high-temperature stack conditions and Ex hazardous zones
- Easy to fit multi-patterned flange
- Adjustable monitoring depth to ensure sampling in the most representative part of the flow path
- For use as PM-CPMS or PM-CEMS that need to comply with PS-11
- ProScatter™ technology offers enhanced measurement due to reduced cross-sensitivity of particle type and size
- Features automatic zero and upscale checks that fully challenge the system’s ability to measure forward-scattered light and satisfy daily drift checks
- Easily audited with manual filters
- Stacks after bag filters, cartridge filters, cyclones, electrostatic precipitators, no filtration.
- Non-condensing / dry flue gases
- Incineration
- Metals eg Steel/Aluminium
- Minerals eg Cement/Gypsum
- Chemicals eg TiO2 / Refinery
- Power Generation Plant eg Coal/Biomass
| Technical Specifications | |
|---|---|
| Measured parameters | Dust |
| Technology | ProScatter™ Forward Scatter |
| Measurement/Monitoring capability | 0-200 mg/m3* |
| Stack/Duct diameter suitability | up to 8m |
| Flue gas temperature | up to 500°C |
| Baghouse | YES |
| Cartridge Filter | YES |
| Ceramic Filter | YES |
| Coalescent Filter | YES |
| Cyclone | YES |
| Electrostatic Precipitator (ESP) | YES |
| Wet Electrostatic Precipitator (WESP) | / |
| Wet Scrubber | / |
| Sensor variants | Stainless Steel |
| QA checks | YES |
*Application dependant
| Technical data | |
|---|---|
| Measurement capability | 0 – 1000 mg/m3 |
| Certification Range | 0 – 15 mg/m3 0 – 100 mg/m3 |
| Resolution | 0.01 mg/m3 |
| Sensor Variants | Stainless Steel (standard). Corrosion resistant Hastelloy (option) |
| Stack Temperature Ranges | 0-250°C. Up to 500°C option |
| Functionality and QA Checks | Automatic zero and upscale checks QA data logging |
| Data Output | RS485 (Modbus) output to Controller |
| Air Purge | requires continuous air purge |
| Enclosure Protection Rating | IP66 |
- US EPA PS-11 compliant
- Ex Zone 2
