DETERMINAZIONE RAPIDA DI MERCURIO IN APPLICAZIONI ANALITICHE

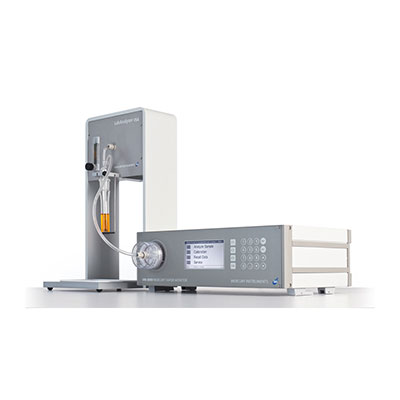

LabAnalyzer 254

Il LabAnalyzer è la perfetta soluzione per la determinazione quantitativa di mercurio in campioni acquosi e campioni digestati in laboratorio.

Contrariamente ai tipici multi-elemento AAS, il LAbAnalyzer 254 è appositamente progettato per il mercurio elementare. Questo permette prestazioni di vertice nelle applicazioni analitiche. L’uso di lampade a mercurio altamente stabili appositamente sviluppate assieme a sensori UV a temperatura controllata permette un limite di rilevabilità di qualche ppt.

  • the optical system does not require any readjustment
  • Short analysis time
  • Low reagent consumption
  • Automatic zero adjustment
  • Memory effects are minimized and a high sample throughput is possible thanks to specially selected materials for sample gas conducting components and heating of the optical bench.
  • For analyses according to DIN 38406-12 / EPA 7470A / EPA 7471A)
  • Measuring range:0.01 ppb … 10 ppb (10 ng/l to 10 µg/l)
  • Hg trap: Mercury vapors cannot escape into the lab
  • Upgradable to VM-3000 Mercury Vapor Monitor
  • Software for data acquisition, data visualisation and storage

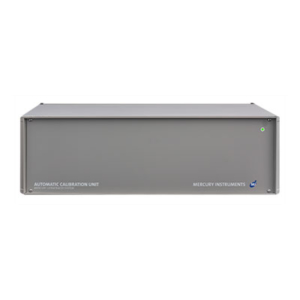

  • Automatic Calibration Module
  • Special version with UT-3000 Ultratracer available
  • Water samples: drinking water, waste water, ground water, surface water, sea water
  • Soil and sludge samples
  • Geological sample material
  • Waste samples: glass, construction rumble, contaminated liquids, wood
  • Incineration plant monitoring: smoke gas scrubber water, smoke gas analysis (e.g. to VDI 3868-2 VE)
  • Monitoring of foodstuffs
  • Clinical samples: urine, saliva
  • Chemical industry: environmental protection and quality control
  • Petrochemical industry
  • Scientific research
Technical Specifications
Measuring principle cold vapor atomic absorption (CVAAS) at 253.7 nm; Peak method
UV-Source Electrodeless low pressure mercury lamp (EDL)
Stabilization method Reference beam method
Optical cell Fused silica (Suprasil), l: approx. 230mm, heated approx. 45°
Sample volume 2 – 10 ml
Measuring ranges liquid sample: 0,01 to 10 μg/l at 10 ml sample volume; solid sample: 0,1 ng/g to 0,1 μg/g at 1 g sample weight
Sensitivity approx. 5 ng/l resp. 0.05 ng absolutely
Reducing agent Tin-II-chloride or sodiumborohydride
Technical data
Signal outputs analogue: 4-20 mA; serial: RS 232 / USB
Power supply 230 VAC / 50 Hz (110 VAC / 60 Hz option)
Power consumption 100 VA
Dimensions (W x H x D) Photometer: 45 x 15 x 35 cm; Reactor: 24 x 48 x 27 cm
Required floor space approx. 70 x 50 cm (W x D)
Weight approx. 10 kg
  • Our products are manufactured according to the ISO 9001 quality regulations.
  • CE approved
