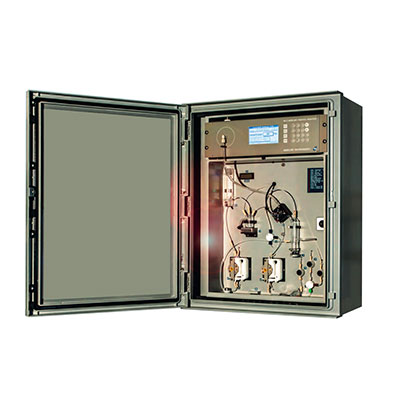

PA-2 / PA2-Gold

L’analizzatore di mercurio PA-2 è utilizzato per il monitoraggio continuo delle concentrazioni di mercurio nei processi industriali.

Il PA-2 è stato appositamente progettato per l’analisi di processo e il funzionamento in condizioni industriali difficili. Il sistema viene fornito con il fotometro VM-3000 o con il fotometro UT-3000 per soddisfare le diverse esigenze di precisione e sensibilità delle misure.

  • Fully automatic system
  • Easy menu-driven operation
  • Proven and reliable detection method: AAS
  • Measuring ranges from 10 ppt to 100 ppm
  • High flexibility of sample pretreatment
  • Suited for complex sample compositions
  • Low reagent consumption
  • Corrosion-protected construction
  • Automatic self diagnosis system for reliable operation
  • Quality control in chlorine-alkali plants
  • Monitoring of scrubber water of waste incinerators and power plants
  • Control of industrial sewage
  • Control of purification plants
  • Quality control of sulphuric acid
  • Quality control of drinking water
Technical Specifications
Measuring principle Amalgamation on MI GoldTrap (PA-2 Gold only), cold vapor atomic absorption (CVAAS) at 253.7 nm
UV-Source Electrodeless low pressure mercury lamp (EDL)
Stabilization method Reference beam method
Optical cell Fused silica (Suprasil), lapprox. 230mm, heated approx. 55°
Measuring ranges PA-2 0.1 … 1 µg/l to 0…10 mg/l
Measuring ranges PA-2 Gold 0.01 … 1 μg/l to 0.1 … 10 μg/l
Sensitivity > 0.01 µg/l
Response time approx. 1 minute
Sample flow approx. 20 l/h
Carrier gas compressed air, filtered, approx. 30l/h, 1bar
Reduction reagent Tin-II-chloride or Sodiumhydroborate
Reagent consumption approx. 3l/week for each reagent
Sample digestion HCl or H2SO4, KMnO4 or H2O2 or Fenton’s Reagent or NaClO3; depending on sample composition
Technical Data
Signal outputs analogue: 4 – 20 mA (500 Ω max.);
serial: RS232 / USB/td>
Status output Calibration; Autozero; Service; Malfunction; according to NAMUR 64 recommendations
Housing Fibreglass-reinforced polyester, for use in highly corrosive environment – Reagent storage cabinet made of chemically resistent plastic material/td>
Protection class IP 66 (EN 60529/ NEMA 3; 3R; 4; 4X; 12; 13)
Operating temperature 0 to 40°C
Sample temperature 65°C
Power supply 230 VAC / 50 Hz (110 VAC / 60 Hz option)
El. Power consumption 750 VA max. (PA-2 Gold, heating peak)
Dimensions (W x H x D) 62 x 78 x 33 cm
Weight approx. 50 kg
  • Our products are manufactured according to the ISO 9001 quality regulations.
  • CE approved
