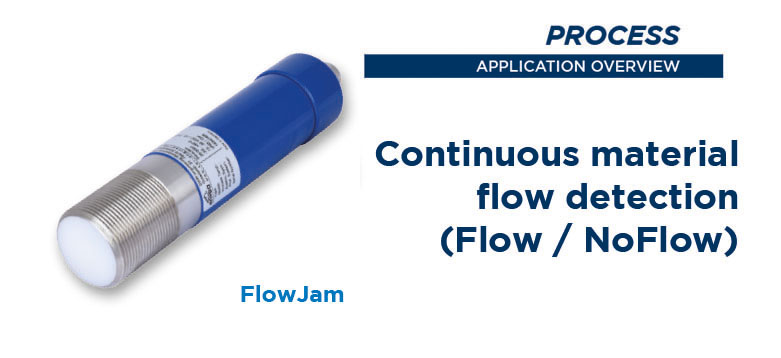

RILEVAMENTO CONTINUO DEL FLUSSO DI MATERIALE (FLOW / NOFLOW)
Sensore a microonde per il monitoraggio senza contatto del flusso di materiale e il rilevamento di intasamenti.
Il sistema funziona senza contatto in un processo in cui il movimento del materiale viene rilevato utilizzando l’effetto Doppler.

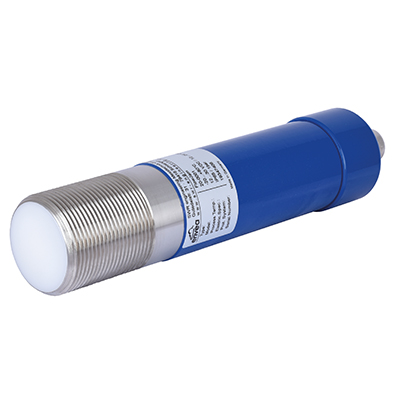

Il FlowJam è un dispositivo sicuro all’interno del processo, la tecnologia a microonde utilizzata può penetrare il rivestimento del materiale sul sensore e rilevare in modo affidabile il movimento del materiale dietro di esso. Se le pareti del contenitore, le custodie o le tubazioni non sono metalliche, è possibile misurare dall’esterno”.
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Mounting Installation
- Downloads
- Absolutely insensitive against material deposits
- For any line diameter
- With adapter, usable up to 220 °C and 20 bar
- Compact (no separate electronics)
- With ceramic mounting, usable up to 1000 °C
- Signalling through relay switching
- Different sensitivity levels
- Detection through all non-conductive walls
- Can also be supplied with short housing and separate electronics
- Detection of material blockage and material standstill
- Steel
- Food
- Biomass
- Cement
- Chemistry
- Coal plant
- Coating
- Incineration
- Minerals
- Wood
- Lime plant
- Energy
- Gypsum
- Power plant
- Foundry
Technical Specifications | |
---|---|
Material to detect | Dust, powders or granulates |
Working principle | Microwave |
Process pressure | Max. 20 bar |
Process temperature | Up to +1000°C |
Mounting | 1 1/2 ” threat connection |
Type of Conveying | All |
Flow rates | No limit |
Pipe diameter/detection range | Up to 1200 mm |
Output | Relay |
- For any line diameter
- With adapter usable up to 220 °C and 20 bar
- With ceramic mounting usable up to 1,000 °C
- Operates with no contact, using microwaves in a process in which the material movement is detected by using the Doppler effect
- Can also be used under difficult conditions such as high operating temperatures and pressures with the help of a process adapter
Technical Data | |
---|---|
Housing material | Stainless steel 1.4571 |
Protective system | IP 65 |
Process temperature | -20…+80 °C -20…+220 °C (with process adapter) Max. 1000 °C (with ceramic flange) |
Ambient temperature | -20…+60 °C |
Working pressure | Max. 1 bar Max. 20 bar (with process adapter) |
Power supply | 24 V DC/AC ± 10 % |
Relay contact | Max. rated load: 250 V AC Max. peak current:6 A Max. rated load 230 V AC: 250 VA Max. breaking capacity DC1: 3/110/220 V: 3/0.35/0.2 A Min. switching load: 500 mW (10 V/5 mA) |
Response time | 250 ms …15 s (continuously adjustable) |
Measuring frequency | 24.125 GHz; ± 100 MHz |
Transmitting power | Max. 5 mW |
Weight | 1.0 kg |
Dimensions | Housing: length of 216 mm / diameter of 52 mm Thread: length of 30 mm / diameter of G 1½” |
Technical Data | ||||
---|---|---|---|---|
Pressure adapter | Temperature adapter | Food adapter | High temperature adapter | |
Material | Stainless steel 1.4571, POM diaphragm |
Stainless steel 1.4571, Tecapeek diaphragm |
Stainless steel 1.4571, Tecapeek GF30 diaphragm |
Steel Ceramic diaphragm |
Temperature | -20…+80 °C | Max. +220 °C | Max. +220 °C | Max. 1000 °C |
Pressure | Max. 20 bar | Max. 20 bar | Max. 20 bar | Max. 40 bar |
Thread | G 1½ inch on both sides | G 1½ inch on both sides | G 1½ inch on both sides | G 1½ inch on both sides |
Wrench width | 55 mm | 55 mm | 55 mm | 17 mm |
The FlowJam can be easily installed in the following ways:
|
