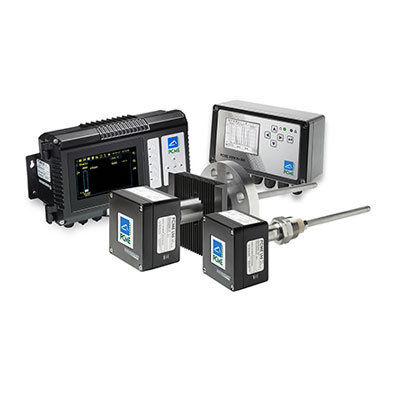

Misuratore di polvere multi-sensore ElettroDinamico
VIEW 800
Misuratore di polvere multi-sensore certificato per la categoria 1 delle ATEX/IECEx progettato per dare la tendenza indicativa o la misurazione delle emissioni in zone pericolose sfidanti
La più recente tecnologia di elettrificazione delle sonde, perfettamente adattata per il monitoraggio delle particelle dopo filtri a maniche, filtri a cartuccia, cicloni ed essiccatori di processo dove non sono richieste approvazioni normative.
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Approvals & Certifications
- Downloads
- Reliable measurement of leaking and broken bags in dust collectors
- Senor configured remotly via controller
- Automatic sensor drift checks (zero and span)
- Automatic probe check (Insulator Short-Circuit Check) for improved data integrity
- Reduces filter maintenance intervals, process down-time and filter costs
- Stacks after bag filters, cartridge filters, cyclones
- Variable velocities within range 4-30 m/s (typical bagfilter velocity ranges), constant velocity required outside this range
- Explosive atmosphere zones 0, 1, 2, 20, 21 and 22
- Minerals (eg Coal Gasification)
- Petrochemicals (eg Plastics manufacture)
- Power (eg Biomas)
- Can be used in metal channels
- Operational range: starts at dust volumes of 0.1 mg/m3
| Technical data | |
|---|---|
| Monitoring capability | 0-500 mg/m3 |
| Sensor Variants | 316 Stainless Steel (standard) |
| Stack Temperature Ranges | 0-250°C |
| Pressure Rating | < 2Bar |
| On-board data logging | User configurable Long term, Short term or Pulse logging |
| Outputs | RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on controller type) |
- Ex Zone 0, 1, 2
- US EPA MACT Compliant BLD
