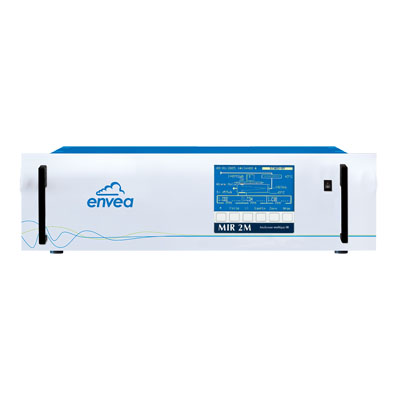

CO, O₂ E CO₂ ANALIZZATORE A INFRAROSSI MULTIGAS
L’analizzatore MIR2M esiste in diverse versioni: singolo o doppio canale e in versione “Ultra Low” per misure di bassa concentrazione di CO (da 0-10 a 0-50 ppm). Viene installato a valle di un chiller, con temperatura controllata per l’abbattimento dell’umidità nel campione da analizzare.
- Non Dispersive Infra Red Gas Correlation Filter (IR GFC) principle
- Short response time: < 2 seconds
- Simultaneous 2-channel monitoring (option)
- Graphic Liquid Crystal Display (LCD)
- Interactive menu driven software with enhanced speed display
- Real time calibration graph
- User adjustable response time and averaging time
- Built-in storage of 2 months 1/4 h average data (up to 1 year with the optional memory extension)
- Built-in double serial interface (RS 232/RS 422) for remote control
- Ethernet connection
- AK Protocol via LAN
- Engine exhaust gas monitoring (raw and CVS)
- Electro-filters
- Combustion plants
- Pre & post catalyst
- Research & Development
- Quality Assurance
Technical Specifications | |
---|---|
Measurement range | CO: 10 to 50,000 ppm, CO2: 100 to 250,000 ppm, O2: 0 to 25%v |
Response time (0-90 %) | 2 sec |
Working temperature | +15°C to + 40°C |
Housing | rack 19” / 3U |
Communication | RS 232 & TCP/IP, AK protocol |
