ANALIZZATORE PORTATILE PER LA MISURA DI MERCURIO IN TEMPO REALE ALL-IN-ONE

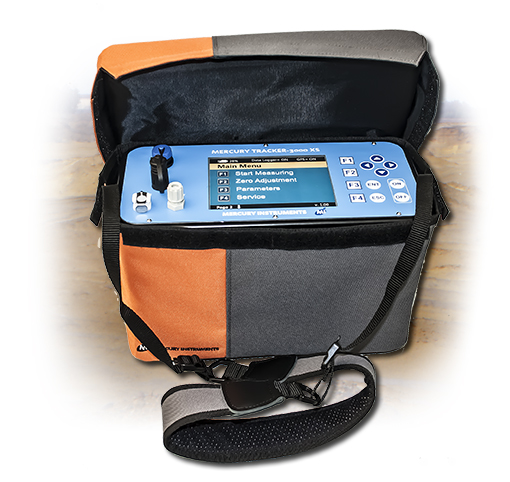

Mercury Tracker-3000 XS
Molto piccolo, ultraleggero, con GPS on board, data logger, batteria e display TFT a colori per un monitoraggio comodo e facile del mercurio nell’aria ambiente e in altri gas
Il monitoraggio e la rilevazione portatili del mercurio sono resi facili dal Mercury Tracker 3000 XS. Leggero, robusto e compatto, lo strumento è perfetto per lo screening interno ed esterno della concentrazione di mercurio nell’aria ambiente e per il rilevamento di fuoriuscite di mercurio.
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Approvals & Certifications
- Downloads
The user controls the Mercury Tracker-3000 XS by menu-guided inputs on a waterproof membrane keypad and a 5.7″ TFT graphic display with LED backlight. After switching on the mercury tracker monitor, the light source is stabilized (approx. 1 – 5 minutes) and the baseline is automatically adjusted by the auto zero function. Measurement will start automatically, and will display continuously the mercury concentration in the air as a numerical value and a graphic bar.
- Real time mercury measurement
- High precision measuring technology: “Cold Vapor Atomic Absorption Spectrometry” (CVAAS) , which is extremely sensitive for mercury determination and is widely used for many years
- Easy to operate, capable of measuring trace mercury levels
- Sturdy and noncorrosive ABS case, chock proof and corrosion resistant for rugged field operation
- Bag pack included, with comfortable shoulder strap, dirt repellent with padded top for transport and savekeeping
- Operates at least five hours on fully charged Eneloop battery pack (aditional quick swap Eneloop battery packs optional)
- Measuring ranges 0.1-100 / 0-1000 / 0-2000 µg/m3
- High resolution 0.0001 mg/m3
- Data logger (with GPS) integrated (4GB capacity)
- Environmental monitoring
- Mercury spills screening
- Safety at work
- Hazardous waste inspection
- Investigation of contaminated sites
- Investigation of mercury contamination in air
- Measurement of mercury in scientific research
- Exhaust gas survey
| Technical Specifications | |
|---|---|
| Measuring principle | cold vapor atomic absorption (CVAAS) at 253.7 nm |
| UV-Source | Electrodeless low pressure mercury lamp (EDL) |
| Stabilization method | Reference beam method |
| Optical cell | Fused silica (Suprasil), l: approx. 170mm |
| Sensitivity | 0,1 μg/m3 |
| Response time | approx. 1 sec, real time measurement |
| Measuring ranges | 0.1 to 100 µg / m3; 0 to 1000 µg / m3; 0 to 2000 µg / m3 |
| Computation of mean values | Autom. via three freely selectable time intervals |
| Data logger with GPS | capacity = 4 GB |
| Technical data | |
|---|---|
| Signal outputs | USB / Bluetooth (software for data transfer included – EXCEL or ASCII format) |
| Status alarms | Measuring cell polluted; battery state; UV-Lamp exhausted |
| Internal power supply | rechargeable 12 V Eneloop batteries with min. capacity of 7 hours and minimized self-discharge, quick swap battery packs as option |
| External power supply | 110 – 230 VAC/50 – 60 Hz; with mains adapter; external 12 VDC sources, (Cigarette lighter adapter optional) |
| Dimensions (W x H x D) | 29 x 14 x 17 cm |
| Weight | approx. 2.6 kg (with battery pack) |
- Our products are manufactured according to the ISO 9001 quality regulations.
- CE approved
