Soluzione miniaturizzata per il monitoraggio in continuo di NH₃

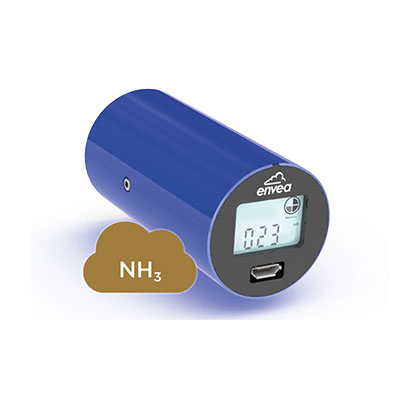

Cairsens® NH₃
Il sensore Cairsens© consente la misurazione di specifiche sostanze inquinanti paragonabili ai metodi di riferimento. I sensori di alta qualità sono rinomati in tutto il mondo dai nostri clienti che cercano le più recenti tecnologie nel monitoraggio della qualità dell’aria.
I Cairsens offrono misurazioni precise ed affidabili, sono calibrati utilizzando un valore di riferimento standard. Vengono forniti con un certificato di taratura unico e non necessitano di altre calibrazioni dopo l’installazione e durante il loro ciclo di vita (da 12 mesi).
L’eccellente precisione di misura si ottiene limitando l’effetto dell’interferenza dell’umidità mediante un filtro di ingresso specifico e brevettato combinato con il campionamento dinamico.
Microsensori NH3
- Features & Benefits
- Main applications
- Technical Specification
- Technical Data
- Approvals & Certifications
- Downloads
- NH3 real-time monitoring
- Very high sensitivity to capture low level gas concentrations (down to ppb)
- Accurate measurement data at a fraction of the cost of Reference Analyzers
- No maintenance required during the Cairsens®’s lifetime
- No need for re-calibration during 12 months
- Embedded USB and UART / ModBus communication ports
- Up to 20 days of 1-minute data storage capacity
- Ultra-small, with close to zero power consumption
- Ready to use and easy to integrate
- Measurements meet European directive 2008/50/EC for indicators
Cairsens® are manufactured in France and calibrated in our metrological laboratory using Standard Reference AQMS monitors. Every sensor shipped includes a calibration certificate.
- Indoor and outdoor air quality monitoring: smart cities, road-side & tunnels, schools, airports, ship terminals…
- Odor monitoring: WWTP, recycling, pulp and paper manufacturing, sewage treatment facilities, refineries
- Leak detection and monitoring of fugitive emissions: quarries, storage facilities, mines, manufacturing plants
- Providing data for air dispersion modelling
- Health and safety: mines, industrial sites, construction
- Forecasting of industrial fence line emission
| Technical Specifications | |
|---|---|
| Measured Parameter | NH3 |
| Article code | A40-0408 |
| Measuring Range (ppm) | 0 – 25 |
| Certified* Detection Limit (ppm) | 0.5 |
| Resolution (ppm) | 0.001 |
| Operating Temperature (°C) | -20 to 40 |
| Operating Relative Humidity (% HR) | 10 to 90 (non-condensing) |
| Sensor Type | Electrochemical |
Metrological performances according to the European Directive 2008/50/EC are guaranteed for 12 months
| Storage conditions | |
|---|---|
| Temperature (°C) | +5 to +20 |
| Relative Humidity (% HR) | > 15 (non-condensing) |
| Duration of Storage (Max) | 6 months |
| Technical specifications | |
|---|---|
| Sampling method | Dynamic air sampling, with a controlled micro-fan |
| Power supply | 5VDC / 500mA, USB port of a PC or Power bank type «Always on» (not provided) |
| Power consumption | 20 mA max under 5 VDC |
| I/O communications | USB, UART, Modbus RTU-TTL. Modbus RS485 on request (article code A40-0219) |
| Lifetime duration | 24 months |
| LCD Display | Concentration in ppb or ppm, operating status, memory available… |
| Control & data treatment | Internal microprocessor for data acquisition and treatment, embedded timer |
| Data Storage (internal) | 20 days for 1 min data, 303 days for 15 min data or 1212 days for 60 min data |
| Download data mode | – Cairsoft (free download) – e-SAM DAHS system or Customized integration – Cairnet® Mini-stations with data exported in the Caircloud® |
| Weight | 55 g |
Cairsens® are manufactured in France and calibrated in our metrological laboratory using Standard Reference AQMS monitors. Every sensor shipped includes a calibration certificate.
| Compliance to environmental regulations | |
|---|---|
| Electrical safety | NF EN 61010-1: 2010 |
| Electromagnetic Compatibility | NF EN 61326-1: 2013 |
| Protection Index | IP 42 (according to IEC 60529) |
| European directive | 2008/50/EC |
