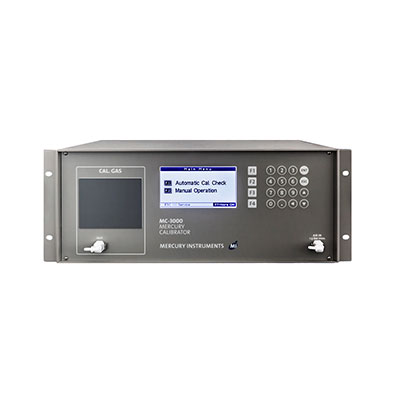

GENERATORE DI MERCURIO PER TARATURA
MC 3000
Il sistema MC-3000 genera un flusso continuo di vapori di mercurio per controllare o calibrare gli analizzatori di mercurio
The MC-3000 is used for generating a continuous stream of a mercury vapor loaded gas stream in order to check or calibrate mercury analyzers. It is also suitable for all those applications where a gas stream with a preset and constant mercury concentration is needed.
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Approvals & Certifications
- Downloads
- Generates elemental mercury vapor
- Continuous operation
- Approx. 10 to 500 µg/m3 Hg°
- Compact sized and portable
- No permeation principle – no need to calibrate the calibrator
- Microprocessor controlled
Suitable for all applications where a gas stream with a preset and constant mercury concentration is needed
| Technical Specifications | |
|---|---|
| Range of concentrations | approx. 10 to 500 µg / m3 Hg° |
| Generated calibration gas flow | 1 to 9 l/min, depending on conc. |
| Carrier gas | Air, Nitrogen |
| Carrier gas flow | max. 12.5 l(min) |
| Carrier gas pressure | 1 to 3 bar |
| Cleansing of carrier gas | builtin particular filter (0.2 µm ) |
| Mercury absorption filter | sulphurized activated carbon at outlet |
| Temperature sensors | Pt-100 with 0.01 °C accuracy |
| Flowmeter | electronic mass flow controller (MFC) |
| Connectors | for tubing 4mm i. d. / 6mm o. d. |
| Technical data | |
|---|---|
| Power supply | 230 VAC / 50 Hz (110 VAC / 60 Hz option) |
| Power consumption | 30 VA |
| Dimensions (W x H x D) | 45 x 18 x 27 cm |
| Weight | approx. 5 kg |
- Our products are manufactured according to the ISO 9001 quality regulations.
- CE approved
